TRAXION | 260mm Travel - Surron Ultra Bee

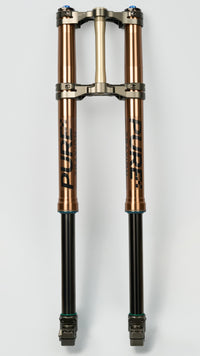

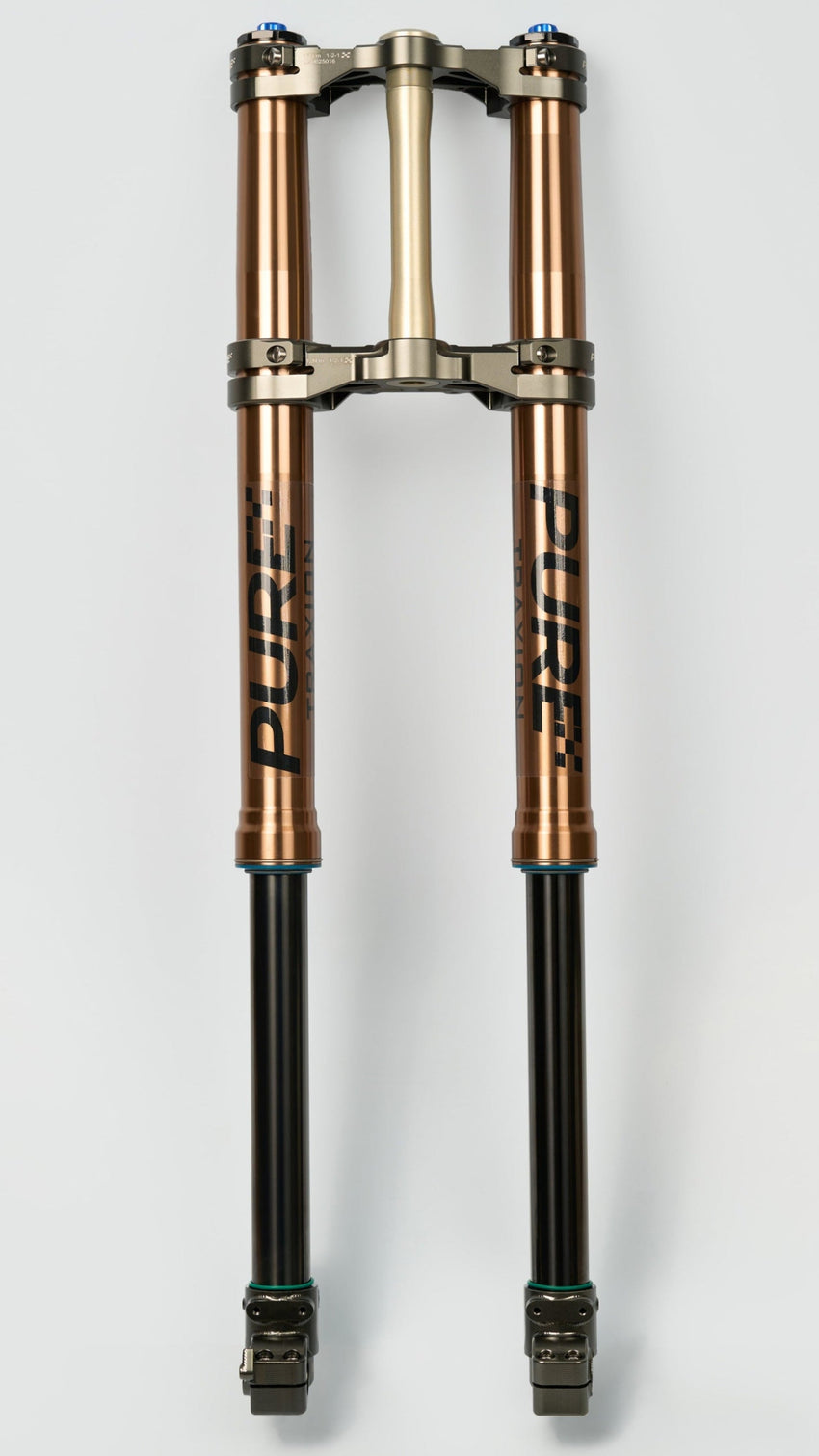

PURE Racing presents the TRAXION fork designed for Surron Ultra Bee.

Includes the most advanced valve system on the market. Patented and protected technology.

Developed through the dedicated efforts of German engineering. Collaborating with leading suspension manufacturing specialists, PURE Racing combines aerospace-grade materials with expert craftsmanship to deliver unmatched quality and performance.

Developed through the dedicated efforts of German engineering. Collaborating with leading suspension manufacturing specialists, PURE Racing combines aerospace-grade materials with expert craftsmanship to deliver unmatched quality and performance.

Tuning and performance specifications:

• Internal preload adjustment on both legs.

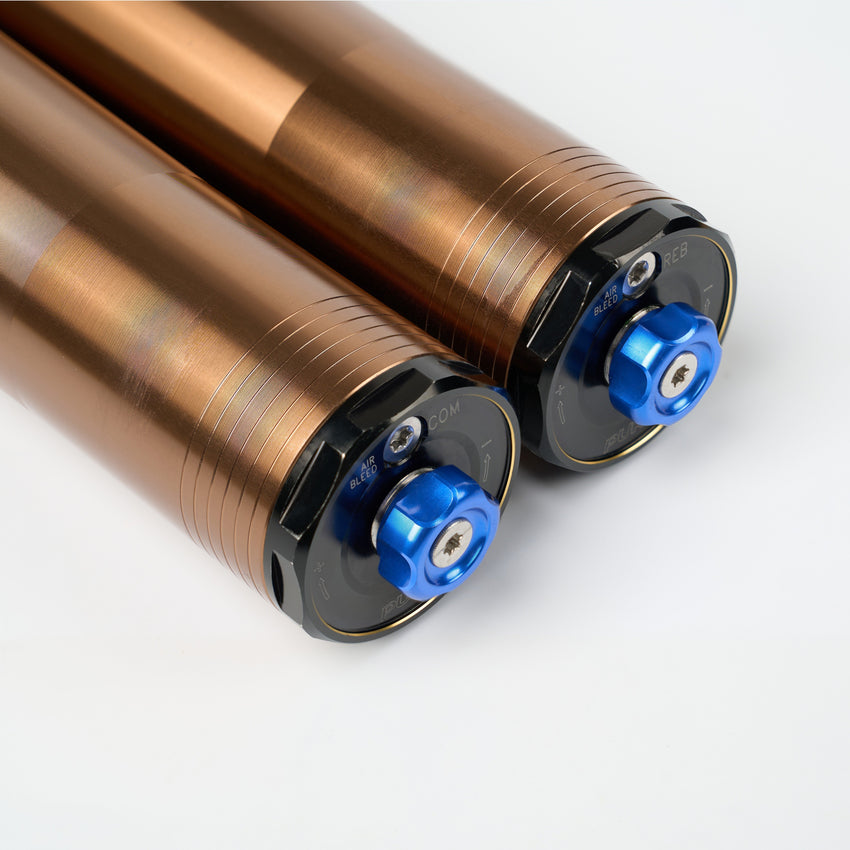

• External 24 click, compression and rebound adjustment.
• Hydraulic bottom out on both legs.
• 5 Spring weight tuning possibilities. (sold separately)
• 2 Valve tunes Trail & MX

Material and design specifications:

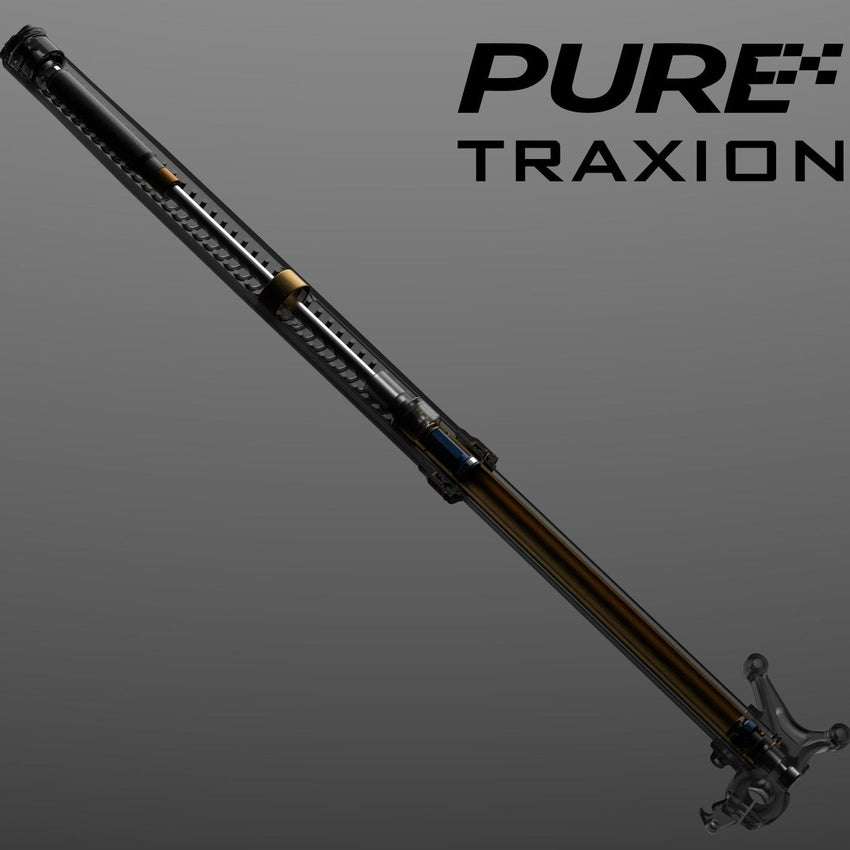

• 3D Printed Waffle Piston located in upper and lower chambers of the internal cartridges, both for compression and rebound legs.
• Precision-honed inner cylinders (±0.01 mm tolerance) ensure ultra-smooth damping and superior traction.

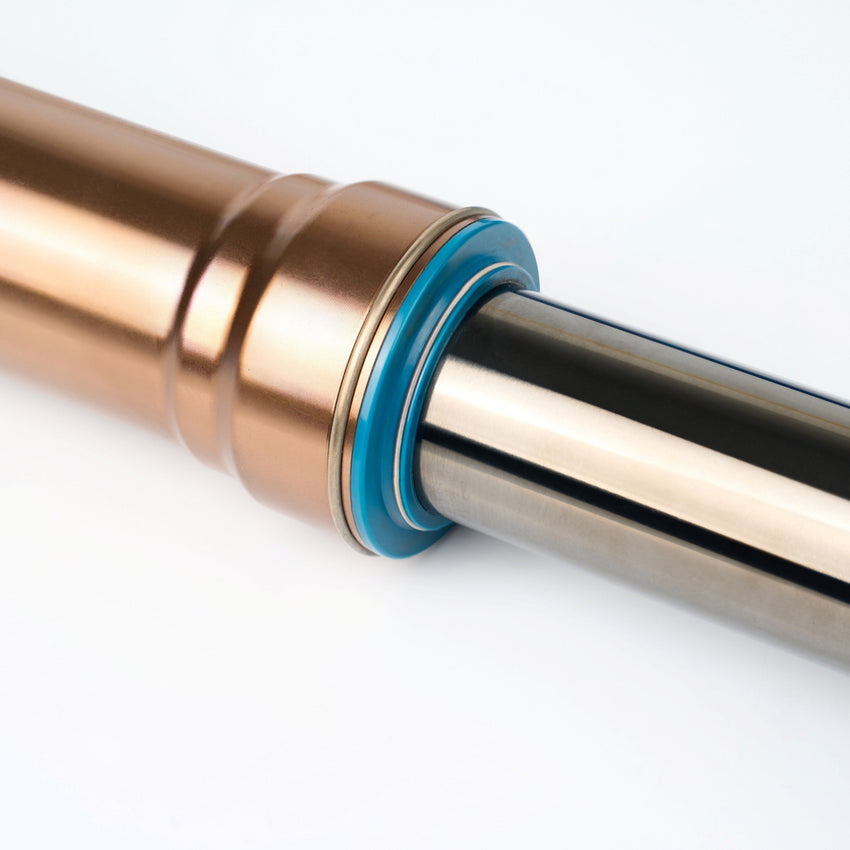

• Custom oil and dust seals balances sealing performance with minimal friction, delivering consistent oil flow over tens of thousands of cycles.
• Advanced fluid dynamics optimize damping response—progressive, silent, and controlled.
• Link plate structure enhanced through FEM analysis ensures high rigidity, fatigue resistance, and weight-optimized strength.

IN THE BOX:

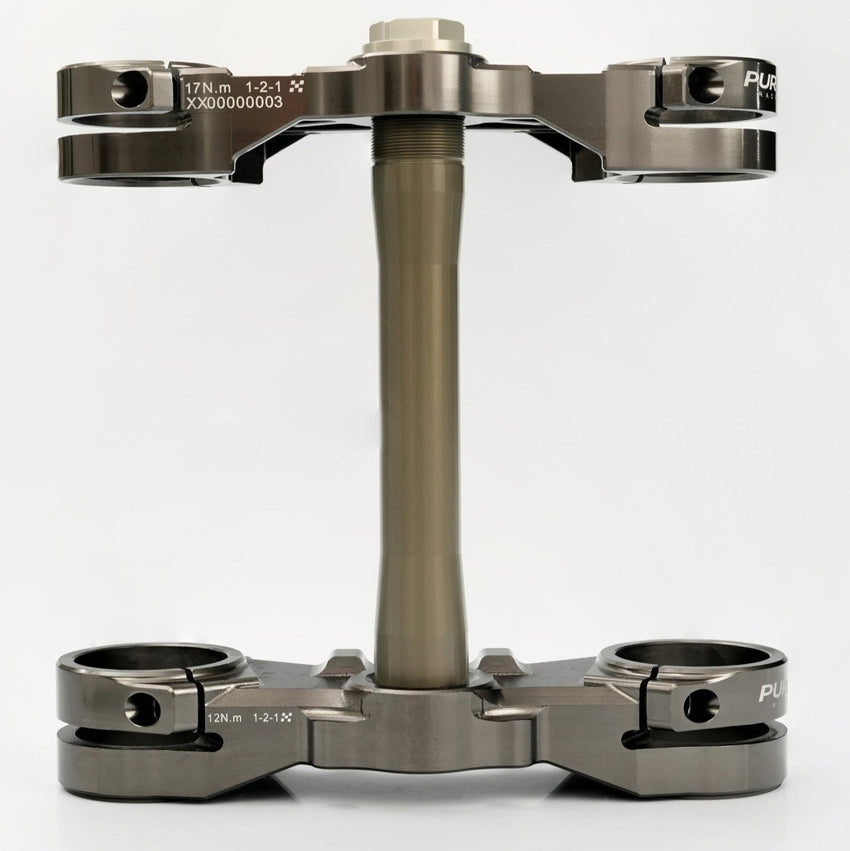

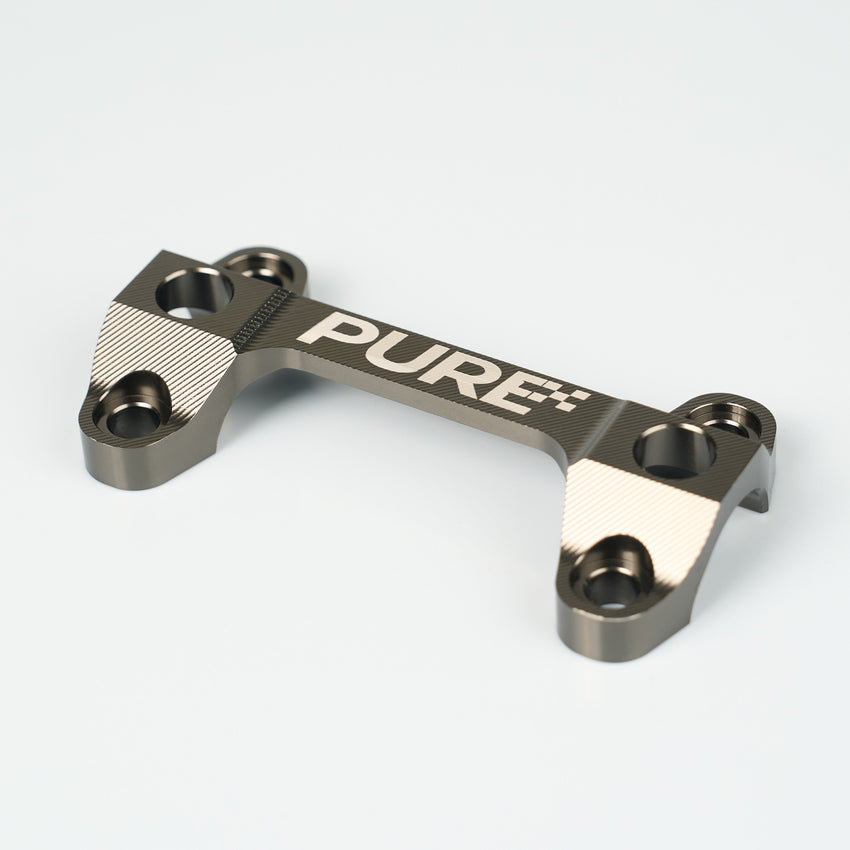

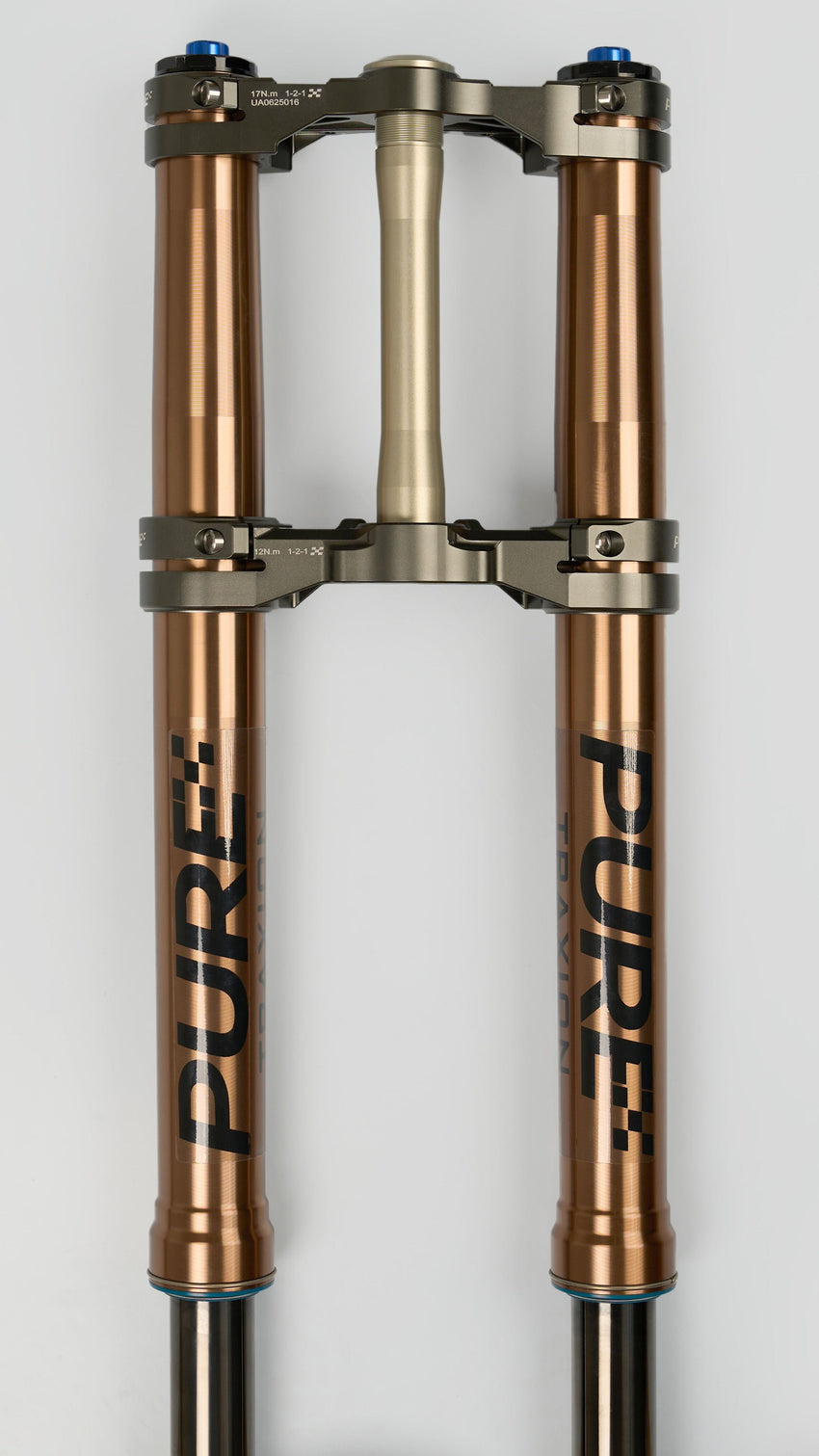

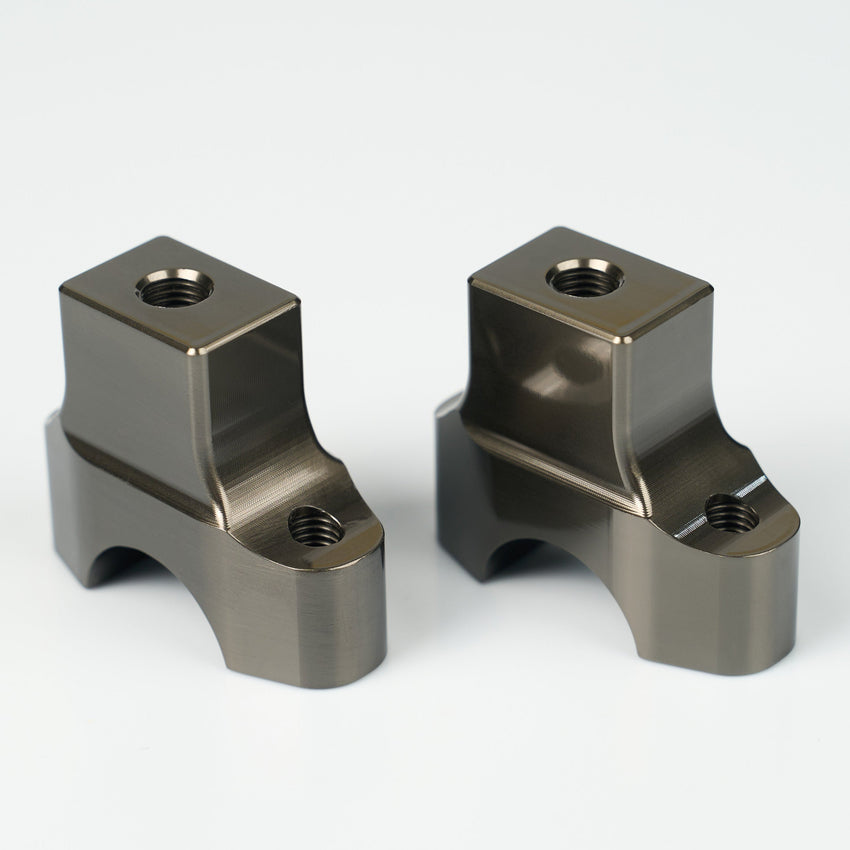

Included is Fork, CNC Crown, CNC Stem and lower bearing pre Installed, headset spacers.

Not Included, Stanchion guards, Surron ultra guards can be reused.

TECHNICAL SPECIFICATIONS:

NAME: TRAXION

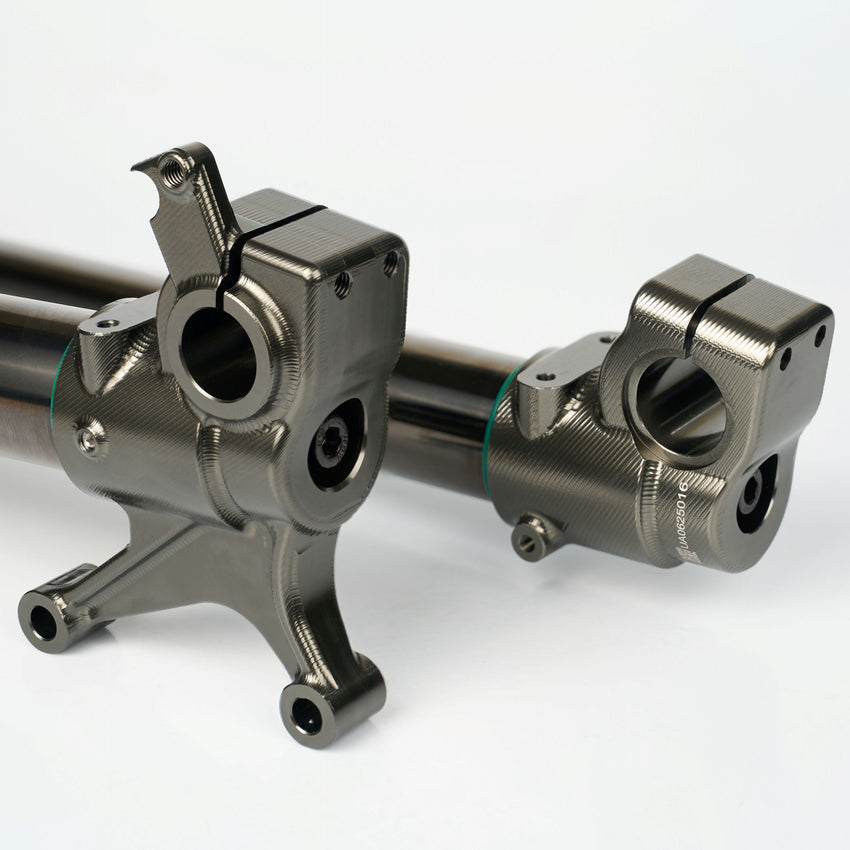

DROPOUTS: Surron Ultra Bee

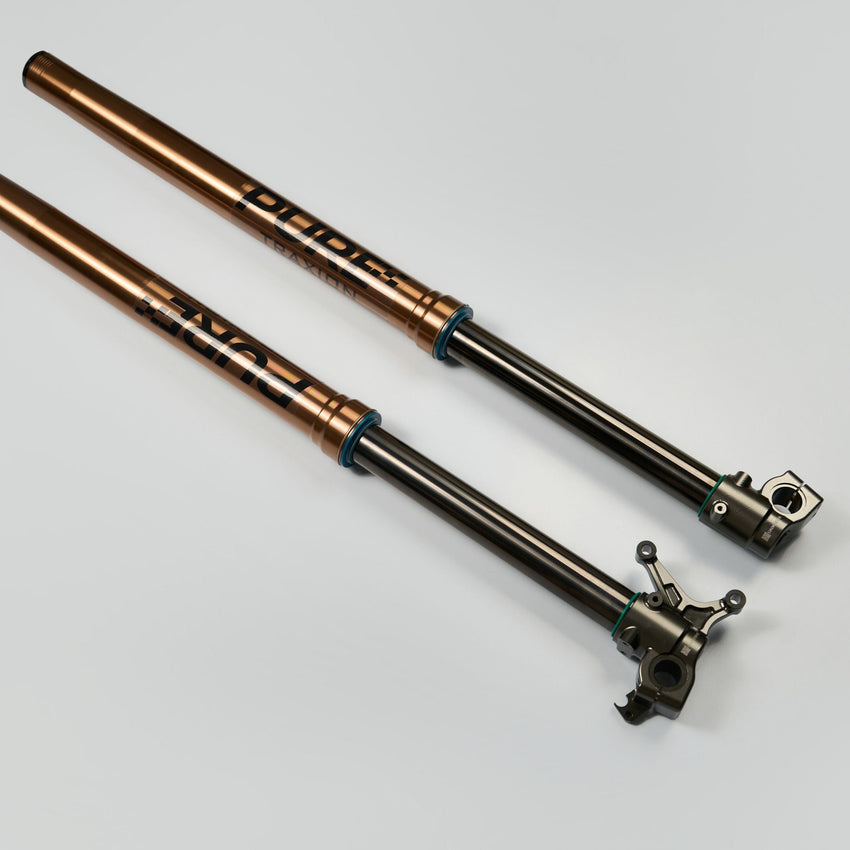

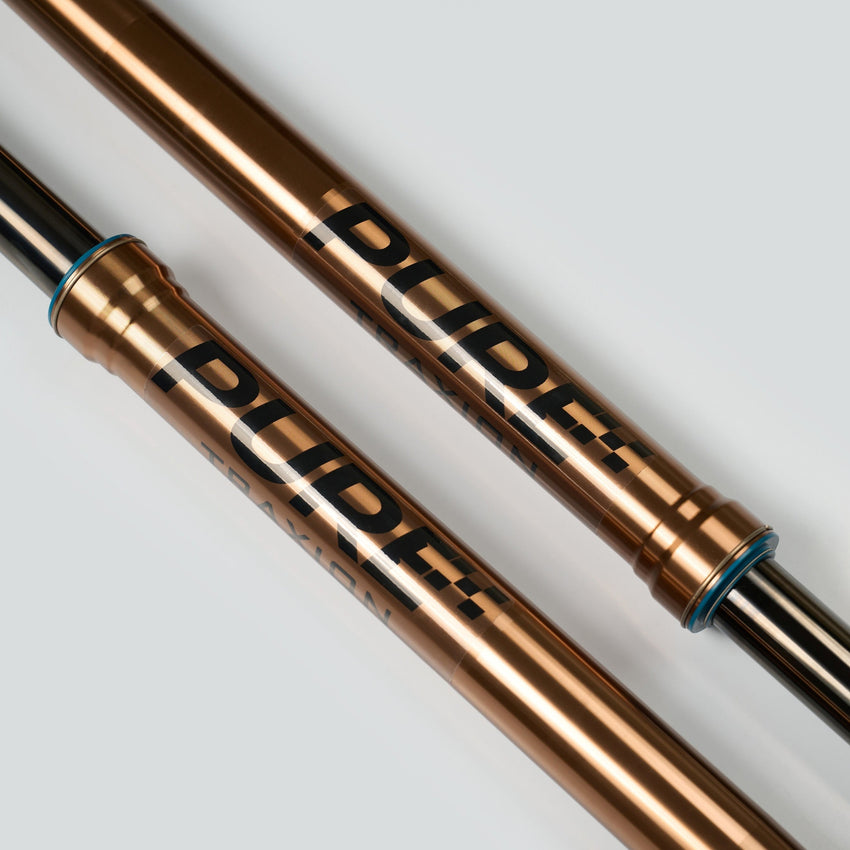

TUBE DIAMETER: Inner 38mm/ Outer 50mm

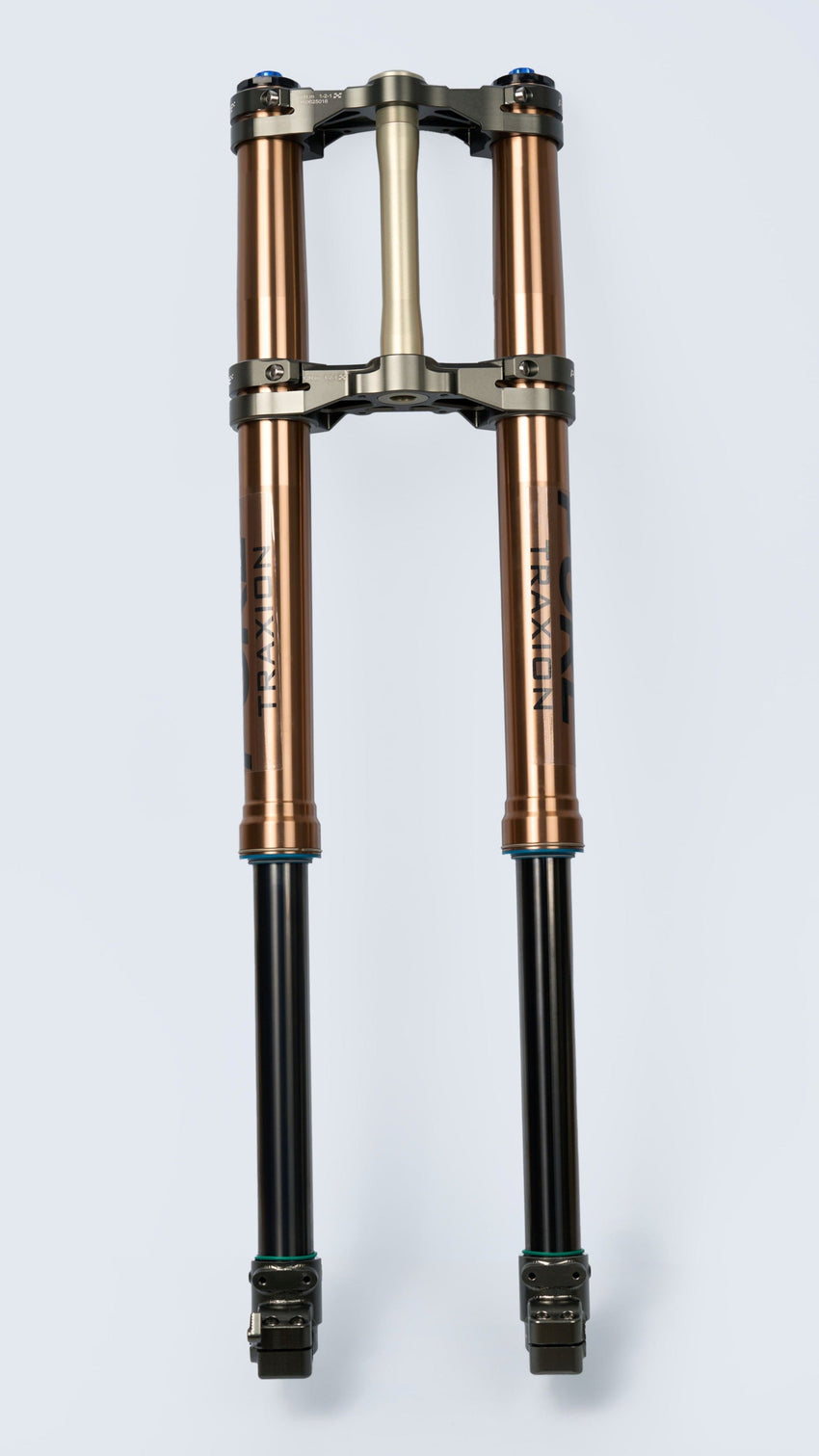

TRAVEL: 260mm / EXTENDED LENGTH: 850mm

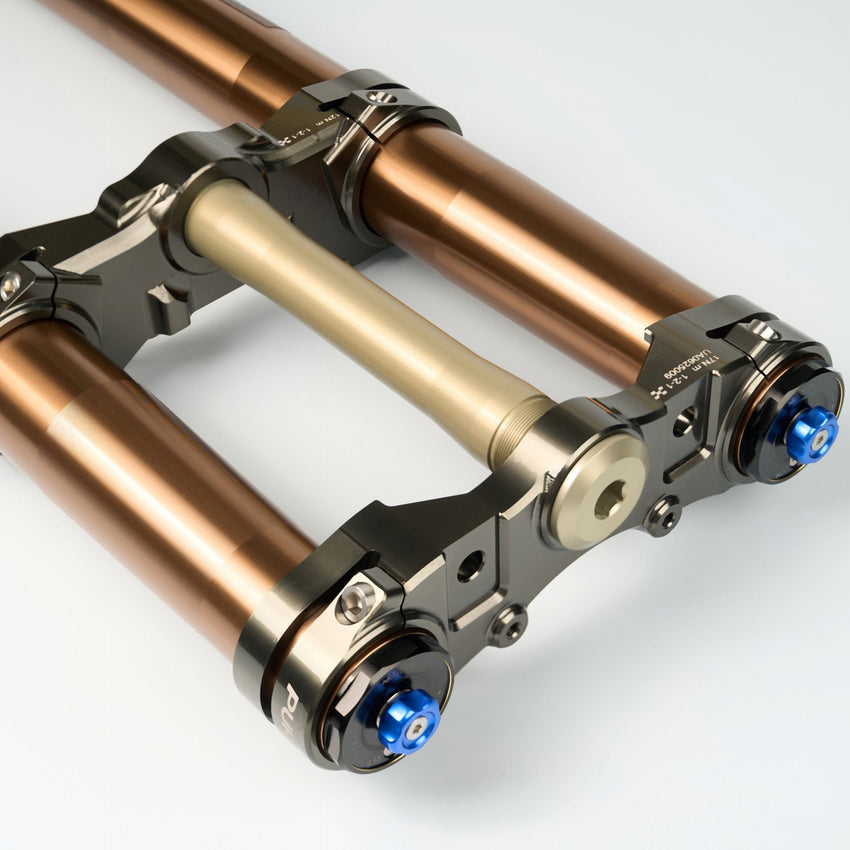

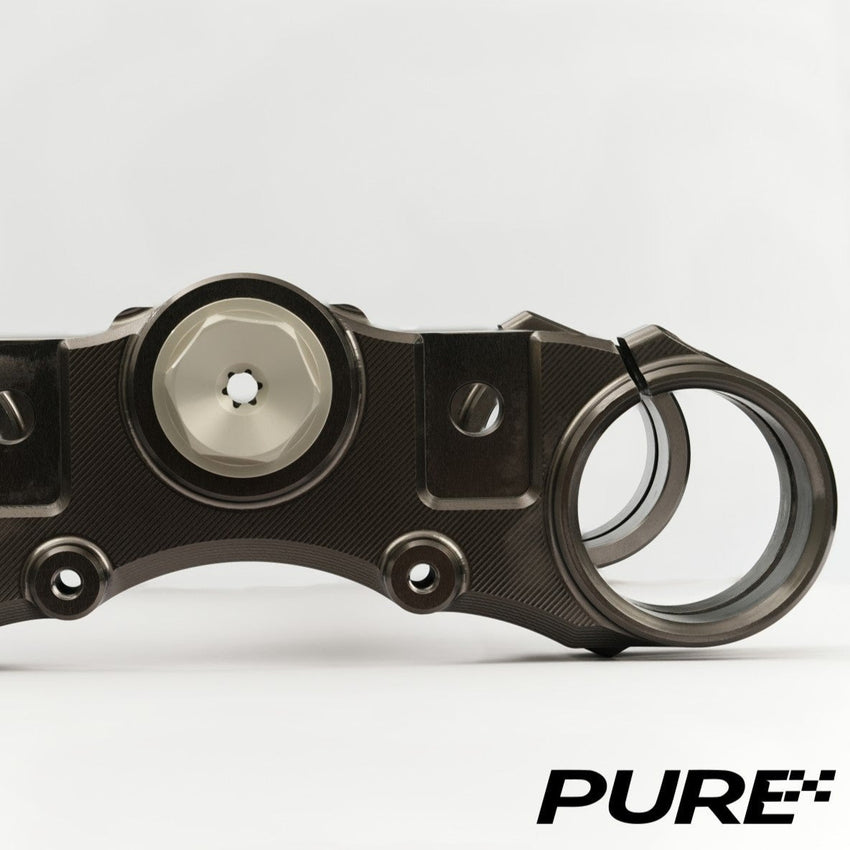

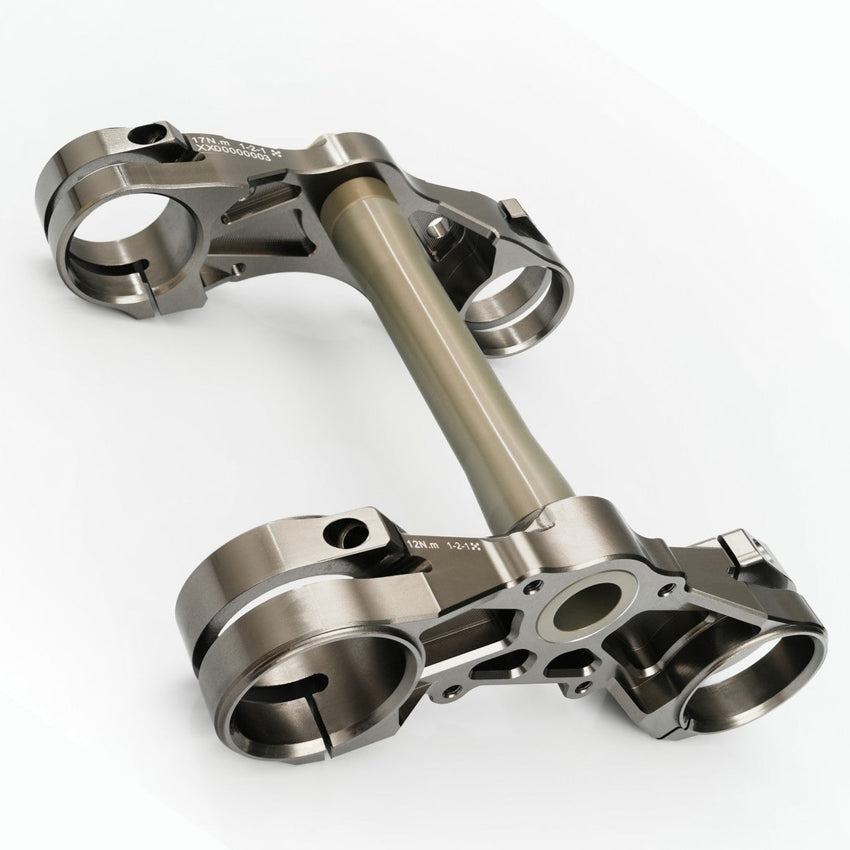

CROWN, STEM & DROPOUTS: Billet Aluminium, anodized coating

DAMPER: Dual sealed closed cartridges, dual-spring

RIDER WEIGHT OPTIONS: Light and Medium(TR)/Medium and Heavy (MX)

COMPRESSION & REBOUND DAMPING: 24-stage adjustable

WEIGHT: 9.8kg complete fork with crown and handlebar stem
